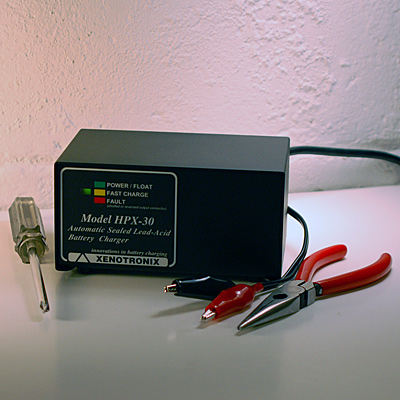

HPX30 Sealed Lead-Acid Battery Charger
The HPX30 is a two stage, temperature compensated, constant voltage battery charger with current limiting. It is designed to automatically switch to a float charge after the battery is charged. It is protected against reversing the output terminals on a battery and short circuits. Standard models are available for charging 12V and 24V batteries and additional models to recharge other battery voltages (4V to 36V) can be made to order. The standard voltages will work with most AGM and Gel Cell batteries and can also be custom calibrated to your exact specification. The output current can be factory adjusted to match your specific battery size. A single stage version is available for charging batteries in applications where there may be a parallel load. A switch is provided for selecting between 115 or 230 V input voltage. Please call or email our technical sales department if you have any questions.
Technical Specifications @ 25 °C (77 °F)
Input Power Requirements
115 or 230 VAC, 50-60 Hz, 0.52 A
Available Charge Current Range
100 mA – 2 A for 12 V models
100 mA – 1 A for 24 V model
Battery Recommendations
Up to 20 Ah for 12 V, 2 A models
Up to 10 Ah for 24 V, 1 A model
Standard Charge Voltage
14.4 V for 12 V models
28.8 V for 24 V model
Standard Float Voltage
13.6 V for 12 V models
27.2 V for 24 V model
Change from Charge to Float
When current drops to 13% of maximum
Dimensions
5.5” W x 3.6” D x 2.9” H
Weight
3.8 lbs.
Operating Temperature
0 to 34 °C or 32 to 93 °F
Storage Temperature
-40 to 80 °C or -40 to 176 °F
Additional Features:
IEC-60320 power inlet accepts detachable power cords
6’ Power cord with Nema 5-15P plug provided standard
115/230 Volts input selection switch
3’ output cable with insulated battery clips provided standard
User replaceable fuse holder with integral spare fuse
Full metal enclosure to ensure field reliability
Temperature compensated
Custom charge voltages and currents available
Custom output cables available
Single tri-color LED indicator (power/charge/fault)
Private labeling available
Warranty
Service: 1 year
Safety Agency Approval
CSA
Product Documentation
PDF format reqires Adobe Acrobat Reader - Click here to download
HPX30 Sealed Lead-Acid Battery Charger
USER'S MANUAL - PDF
