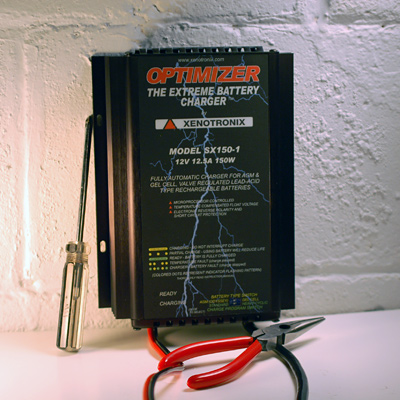

P/N SX150-1, 12V 12.5A, 150W
Endorsed by EnerSys to charge and maintain
their line of Odyssey® DrycellTM batteries –
models PC310, PC535, PC545, PC625, PC680,
PC925 & PC1200* (and variants)
Appropriate for Cyclon® D, X, E, J & BC cells &
monoblocs (12-volt packs), and Genesis® models
13EP, 16EP, 26EP, XE13, XE16 & XE30
An excellent choice for most AGM and Gel Cell,
Valve Regulated Lead-Acid Batteries, from 30 to
125 AH in capacity (or more)**
* may not be suitable for all applications – please contact factory
** based on a manufacturer recommended charge current of 12.5A
Technical Specifications @ 25 °C (77 °F)
Input Power Requirements
115 VAC, 60 Hz, 2 A
Charge Current
12.5 A
Charge Voltage
14.7 V for AGM batteries
14.1 V for Gel-Cell batteries
Float Voltage
13.62 V for AGM batteries
13.50 V for Gel-Cell batteries
Dimensions
8.6” L x 6.4” W x 2” H
Weight
3.45 lbs.
Operating Temperature
-20 to 50 °C or -4 to 122 °F
Storage Temperature
-40 to 80 °C or -40 to 176 °F
Additional Features:
6’ Power cord with Nema 5-15P plug provided standard
6’ output cable with insulated connector and detachable harness with ring terminals
Battery type switch for AGM and Gel Cell batteries
Charge algorithm switch for standard and heavy-cyclic programs
Heavy-duty aluminum heat sinking enclosure
Custom charge voltages and currents available
Custom charge programs available
Custom output cables and detachable harnesses available
Input cordsets for use in other countries available
Two LED indicators (charge and fault status)
Private labeling available
Options:
230 VAC, 50-60 Hz input voltage
115/230 VAC, 50-60 Hz switch selectable input voltage
Warranty
Service: 3 years
